Crawler Drill Machine TAM 341
Construction and Mining Equipments, Pneumatic Crawler Drills, Hydraulic DriveN Crawler Drills, ExplorATION Drill Rigs & DTH Hammers, RC Hammers, Button Bits

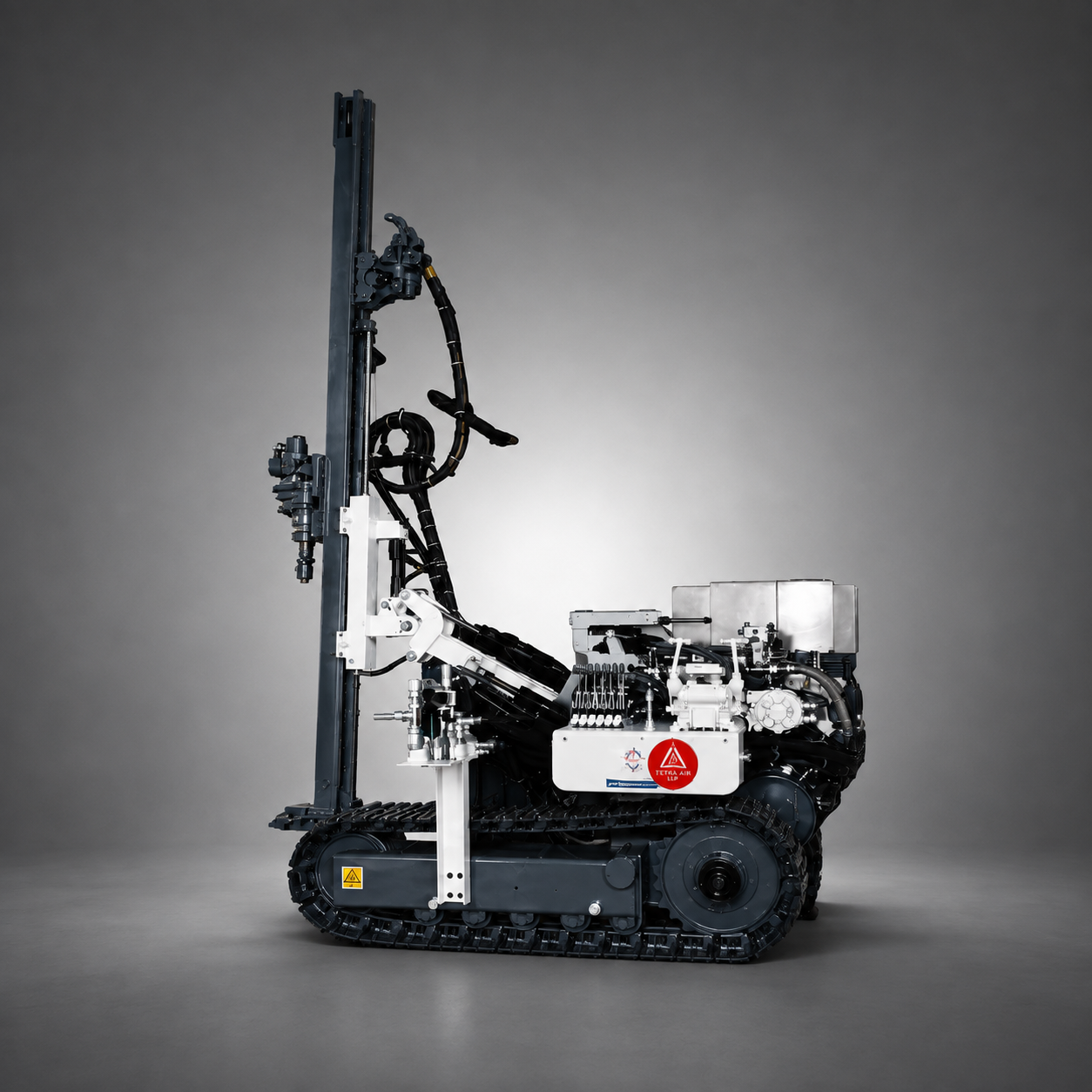

TAM341 PNEUMATIC CRAWLER DRILL
TECHNICAL SPECIFICATION
General Specification
| Hole Dia. | 100-140mm |
|---|---|
| Hole Depth | 10-15 mtrs |
Under Carriage
| Metric | US | |
|---|---|---|
| Tramming Speed | 3.5 km/hr | 2.17 m/hr |
| Traction Force | 34.5 kN | 7.30 lbf |
| Traction Pull | 14 kN | 3372 lbf |
| Ground Clearance | 260mm | 10.23" |
| Track Oscillation | ±15° | |
| Hill Climbing Ability | 30° |
Feed System
| Metric | US | |
|---|---|---|
| Feed Rate Max. | 0.25 m/s | 49 ft/min |
| Feed Force Max. | 21 kN | 4720 lbf |
Power Pack
| Metric | US | |
|---|---|---|
| Propel Motor | 8.5 kW | 11.4 HP |
| Hydraulic Pump Motor | 5.8 kW | 7.7 HP |
| Feed Motor (BRH/ARH) | 4 kW | 5.36 HP |
Volumes
| Metric | US | |
|---|---|---|
| Hydraulic Oil Tank | 50 ltrs | 15 gal |
| Propel Gear Box | 2 ltrs | 0.5 gal |
| Lubrication Tank | 7 ltrs | 1.8 gal |

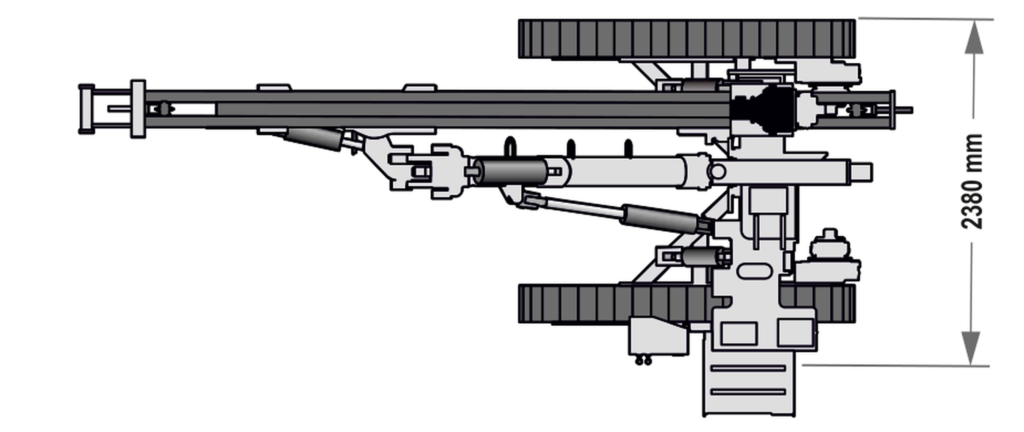

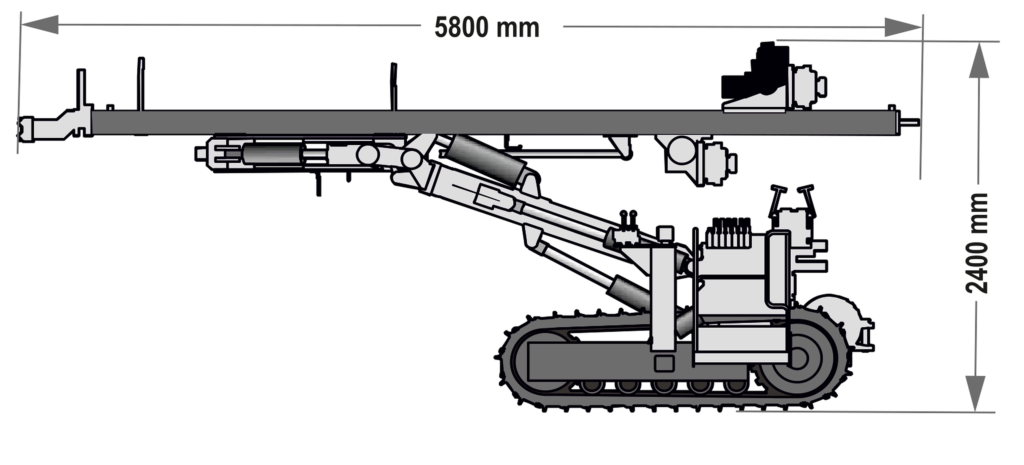

Transport Dimensions
| Metric | US | |
|---|---|---|
| Height | 2400 mm | 8 ft |
| Length | 4800 mm | 15.7 ft |
| Width | 2350 mm | 7.7 ft |
| Weight | 3500 kgs | 7716 lbs |
