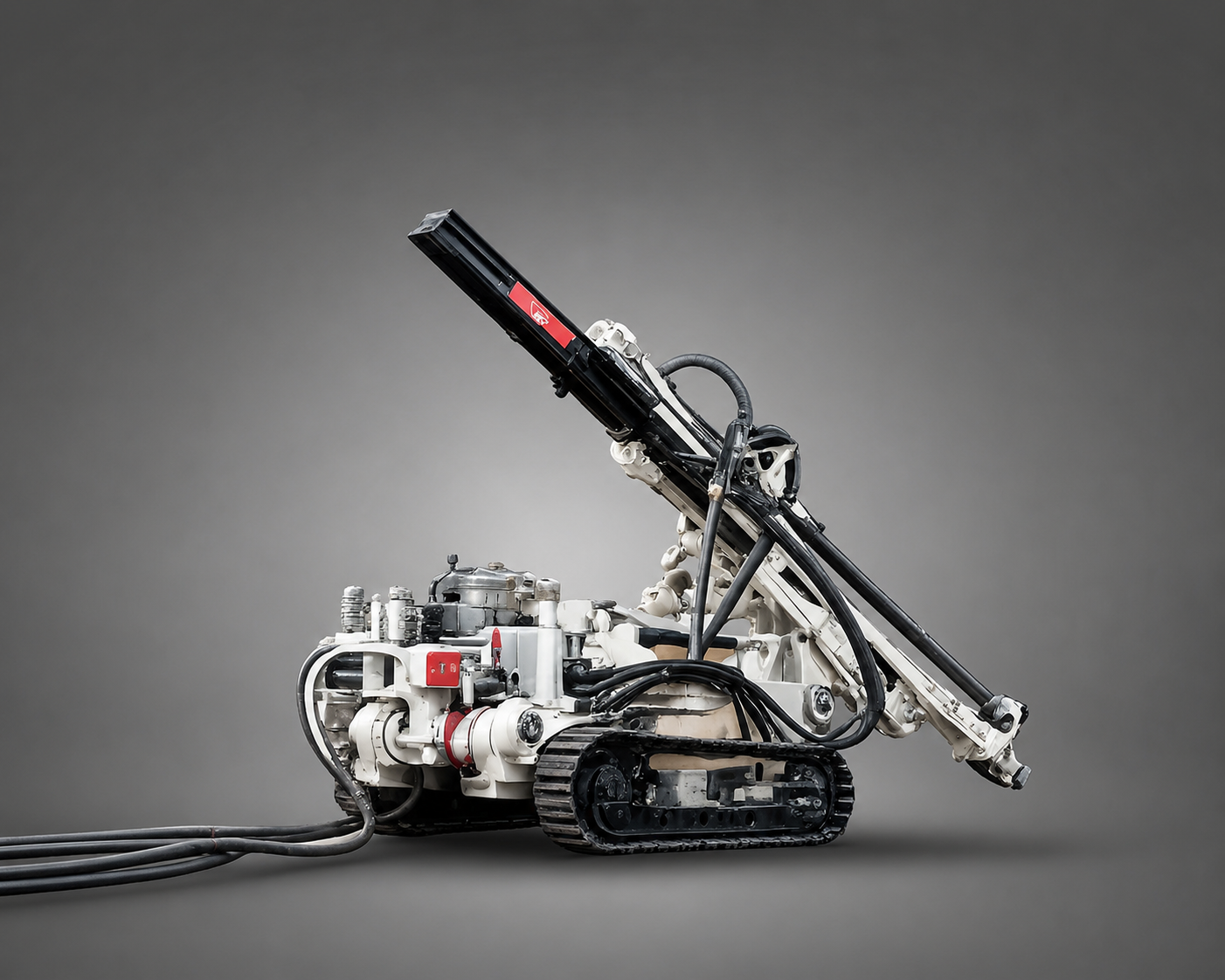

Crawler Drill Machine TAM 200
Construction and Mining Equipments, Pneumatic Crawler Drills, Hydraulic DriveN Crawler Drills, ExplorATION Drill Rigs & DTH Hammers, RC Hammers, Button Bits
TECHNICAL SPECIFICATIONS
- Pneumatic-driven hydraulic power pack for hydraulic cylinders
- Pneumatic-powered traction motors with transmission gear box
- Pneumatic-operated chain feed for 3000MM (10ft) drill tubes
- 14bar airline and oil lubrication system
- Hydraulic track oscillation
- Side-mounted drilling & tramming control panel
- Side-mounted drilling control panel
- Track chains with 260mm trouser pad
- De-clutching crawler drive mechanism
- Towing Hook
- Extra air outlet for cleaning and bits grinders
| UNDER CARRIAGE | FEED SYSTEM | ||||
|---|---|---|---|---|---|
| Metric | US | Metric | US | ||
| Tramming speed Max | 3.0 Kmph | 2.17 mph | Feed rate max. | 0.3 m/s | 59.0 ft/min |
| Track Oscillation | +/- 20° | +/- 20° | Feed Force Max | 18 kN | 4,102 lbf |
| Ground clearance | 240mm | 10.23" | Tractive Pull | 17 kN | 3,889 lbf |
| Hill climbing ability | /30° | ||||
POWER PACK & HORIZONTAL DRILLING RANGE
| Metric | US | |
|---|---|---|
| Feed Motor | 3.8 KW | 5.0 HP |
| Feed Motor Type | 6 piston | 6 piston |
| Hydraulic Pump Motor | 5.2 KW | 7.0 HP |
| Horizontal Drilling Height | 2520 mm | 99" |
| Horizontal Drilling Width | 1500 mm | 59" |
PERFORMANCE: DTH operations are done by BRH rotation units, driven by powerful air motors. Hydraulic cushioned track oscillation absorbs shock and low center of gravity design provide a solid base required for drilling.
POWERFUL: Tramming is done by independent powerful 11.4 HP air motors, with forward and reverse facility. A piston type air feed motor driven heavy roller chains, providing pull out and pull down force required in drilling.
SIMPLE OPERATION AND EASY MAINTENANCE: Side mounted control provides easy to the machine. Robustly engineered parts and simple design makes maintenance a quick one man task.

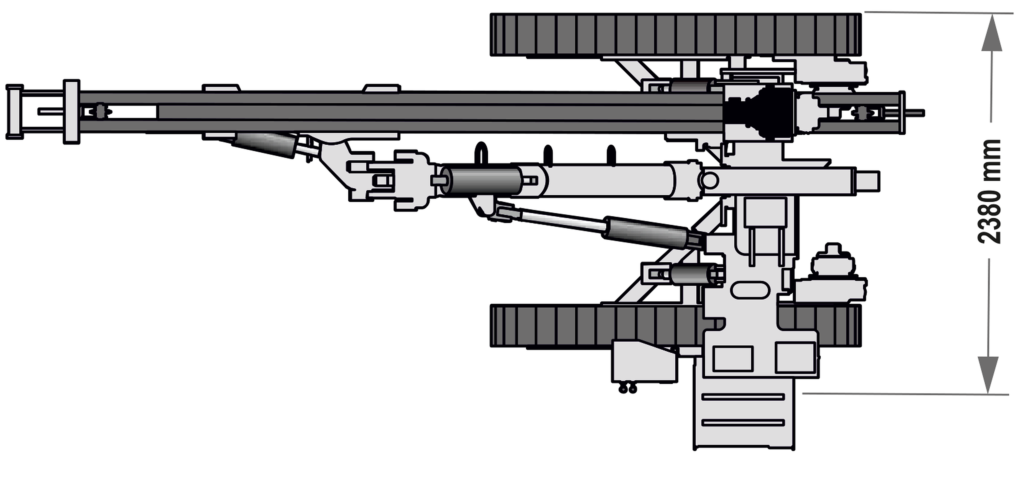

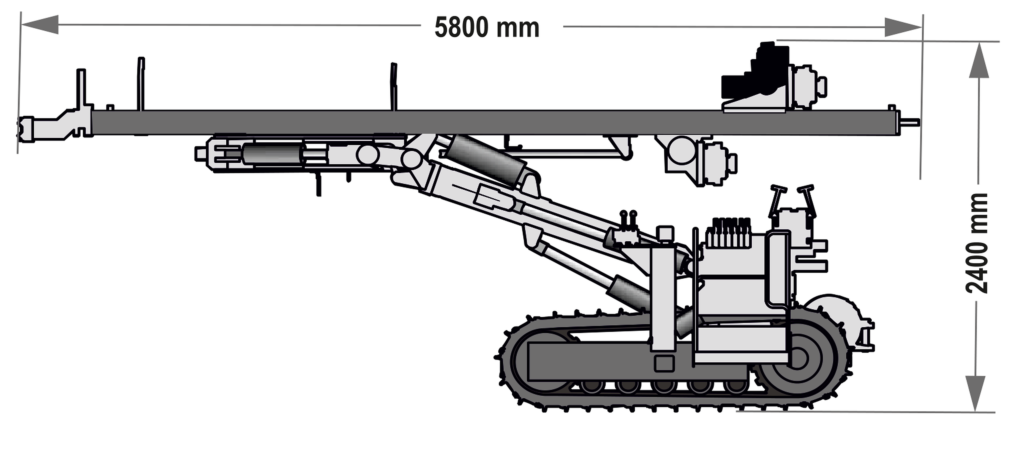

EASY TRANSPORTATION: De-clutching mechanism and compact design makes transportation possible in STD 20ft containers.
